Replace the T6 outer nozzle mesh with careful edge handling. Identify the right filter, use fine-tip tweezers and keep tools out of the sound channel.

Details

A blocked or damaged outer nozzle mesh can leave an IEM sounding quieter or less clear. This TINHIFI T6 guide explains careful mesh handling with fine-tip tweezers. Work on the outer mesh at the end of the sound nozzle, under the ear tip. Never push the tweezer points into the sound channel.

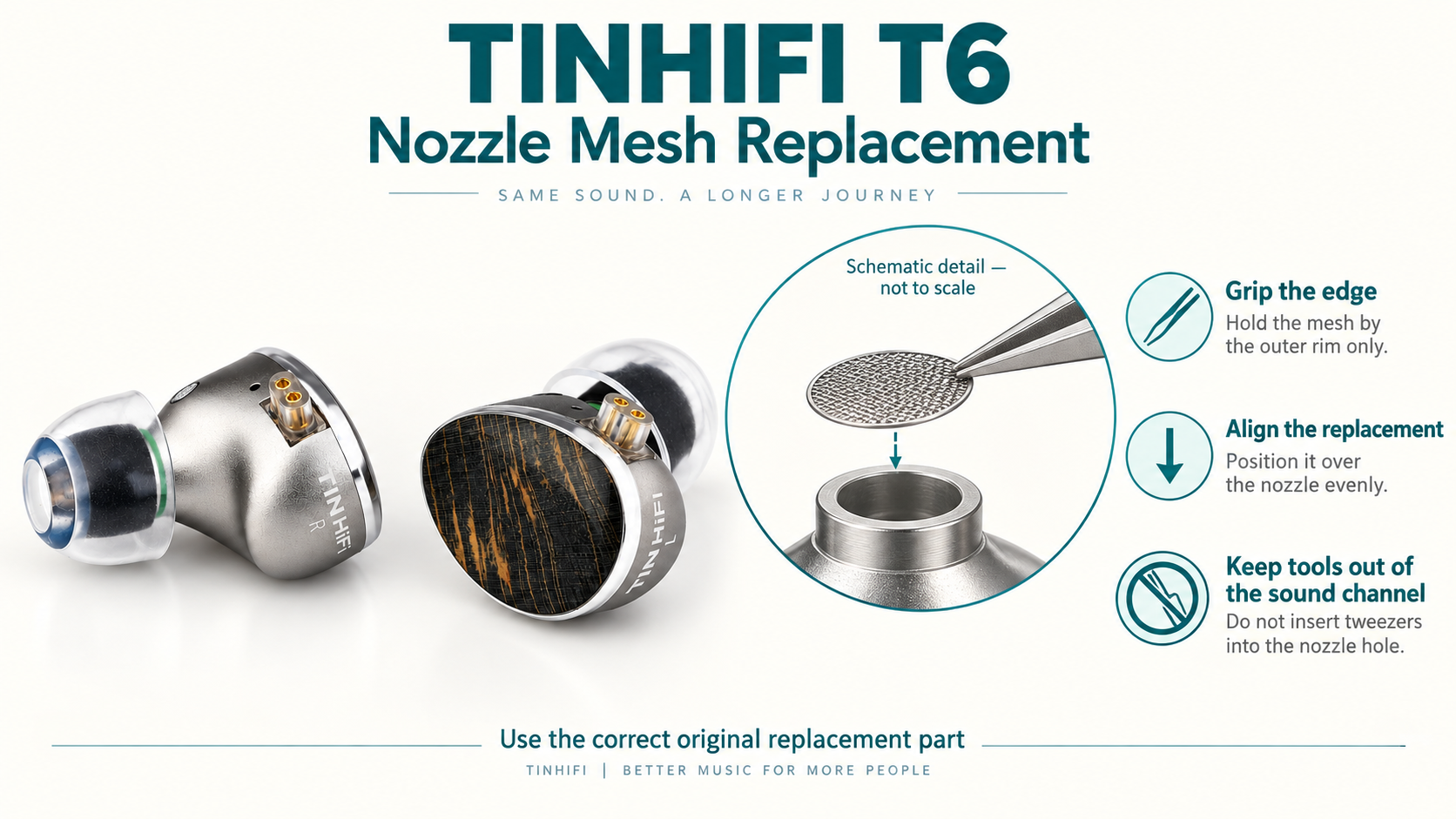

TINHIFI T6 with an enlarged schematic showing fine-tip tweezers holding a replacement nozzle mesh by its edge

Illustration based on the official T6 exterior reference. The enlarged mesh detail is a schematic, not an exact-size drawing or a view of the internal assembly.

Check which T6 filter you are replacing

The T6 product information lists nozzle mesh, nozzle foam inserts and APC acoustic filters as separate parts. This guide concerns the outer nozzle mesh only. The side vent on the shell is not the sound outlet beneath the ear tip. Do not remove a side-vent filter or pull out internal damping material while replacing the outer mesh.

Use the specified T6 replacement mesh. Diameter alone does not establish compatibility: mesh resistance and construction can affect sound. If you cannot identify the replacement or its fixing method, send support a clear photo before removing the installed part.

What you need

Prepare fine-tip tweezers, the correct replacement mesh, a clean tray, good lighting and a soft dry cloth. Disconnect the earphones from the source, gently remove the ear tip and photograph the original mesh position. Fine tips help handle the small edge; they should never be used to pierce the mesh.

How to replace the outer nozzle mesh

Lift from the accessible edge. Grip the outer edge gently with the tweezers and lift without pushing the points through the opening. Stop if the mesh resists removal or there is no accessible edge.
Leave the other layers in place. Do not pull on foam, internal dampers or APC components. If another layer moves with the mesh, stop and ask support.
Check the seating rim. It must be clean and dry. Remove loose external debris only by the approved cleaning method. Do not scrape inside the nozzle or introduce liquid.
Prepare the replacement. Hold its edge. If your supplied replacement is self-adhesive, remove the backing as instructed without touching the adhesive or active mesh. If it is not self-adhesive, obtain the correct fitting instructions; do not add household glue.
Align and seat the mesh. Centre it on the intended rim without wrinkles or gaps. Follow the part instructions for gentle perimeter pressure. Do not press into the centre or stack the new mesh over the old one.
Check before listening. Follow any stated settling instructions, confirm the mesh is secure, refit the tip and test briefly at low volume. Do not use an earphone with a loose filter.

Should I replace both sides?

Keep the specified mesh type and nozzle configuration consistent between left and right. Ask support whether your replacement set should be installed as a pair. Do not mix random filter specifications to hide an unresolved imbalance, and do not leave the nozzle unprotected as a permanent fix.

What if one side is still quieter?

A filter is only one possible cause. Check the ear-tip seal, source balance setting and cable connection using our channel imbalance checklist. If the problem remains, stop changing parts and provide support with your model, photos and the checks already completed.

See the official TINHIFI T6 product and accessory information, read our IEM cleaning guide, or contact TINHIFI support for the correct replacement.
